E-Bike Fit Guide for Short Riders
(5’0″ – 5’5″)
Finding an e-bike that actually fits when you’re under 5’5″ is harder than it looks. Most bikes are designed for riders 5’7″ and above. This guide cuts through the noise — giving you the exact measurements, models, and red flags to look for before you buy.
Why Fit Matters More Than Specs for Short Riders
When you’re between 5’0″ and 5’5″, the biggest risk isn’t buying the wrong motor or battery — it’s buying a bike you can’t safely mount, dismount, or control. A bike that’s even 2 inches too tall can make riding uncomfortable, exhausting, and potentially dangerous.
Most e-bike brands publish a “recommended height range” that’s vague at best and misleading at worst. They list standover height, but not reach. They show seat height, but not handlebar drop. We test bikes with real short riders and report the numbers that actually matter.
📏 The #1 mistake short riders make: trusting the size chart. A bike listed as “fits 5’0″–6’0″” is almost never a good fit at 5’0″. Always check standover height, minimum seat height, and reach independently.
This guide gives you a systematic framework to evaluate any e-bike for fit — whether you’re shopping online or at a local dealer.
The 3 Fit Dimensions That Matter
Find Bikes by Your Height Range
Click your height range to see bikes that are confirmed fits — tested by real riders.
- Standover height under 24″
- Minimum seat height under 27″
- Step-through or low-step frames preferred
- Lightweight (under 55 lbs) recommended
- Standover height under 27″
- Minimum seat height under 30″
- Both step-through and low step-over work
- Check reach — many bikes still too long
- Most compact e-bikes will fit
- Standover height under 30″
- Step-over frames are fine with proper sizing
- Focus on reach and handlebar height
Not sure which range you fall into? Learn how to measure yourself accurately →
Key Fit Measurements by Height Range
Use this reference table when evaluating any e-bike. These are the maximum values we recommend for each height range, based on testing with real short riders. Values outside these ranges don’t mean the bike won’t work — but they’re a signal to look more carefully.
| Rider Height | Max Standover Height | Max Min. Seat Height | Max Reach | Frame Type | Max Weight |
|---|---|---|---|---|---|
| 5’0″ (152 cm) | ≤ 23″ | ≤ 26″ | ≤ 18″ | Step-through preferred | ≤ 50 lbs |
| 5’1″ (155 cm) | ≤ 24″ | ≤ 27″ | ≤ 19″ | Step-through or low step-over | ≤ 55 lbs |
| 5’2″ (157 cm) | ≤ 26″ | ≤ 28″ | ≤ 20″ | Both work with care | ≤ 58 lbs |
| 5’3″ (160 cm) | ≤ 27″ | ≤ 29″ | ≤ 21″ | Both work with care | ≤ 60 lbs |
| 5’4″ (163 cm) | ≤ 29″ | ≤ 30″ | ≤ 22″ | Step-over fine if reach is OK | ≤ 62 lbs |
| 5’5″ (165 cm) | ≤ 30″ | ≤ 31″ | ≤ 23″ | Most compact bikes work | ≤ 65 lbs |
* These are guidelines based on our testing. Individual comfort varies. Always test ride when possible.
What to Check Before You Buy
Beyond the numbers in the table above, here are the six things we always check when evaluating an e-bike for a short rider. Each one can make or break the riding experience.

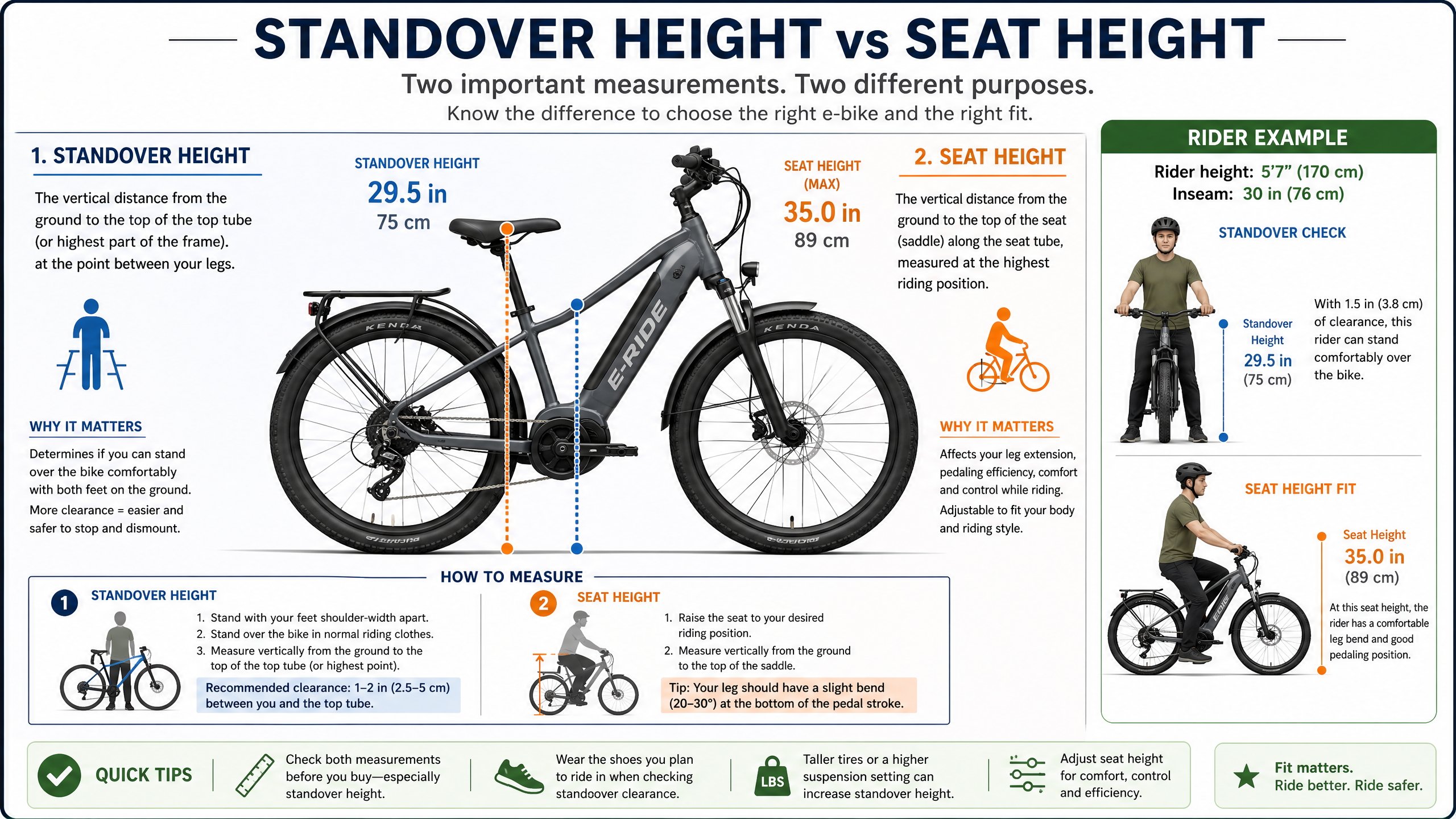

Standover Height
Measure from the ground to the top tube at the midpoint. You need at least 1″ of clearance over your inseam. For step-through frames, this is not an issue.
Minimum Seat Height
The lowest the saddle can be set, measured from the ground to the top of the saddle. This determines if you can touch the ground at stops.
Reach
The horizontal distance from the saddle to the handlebars. Too much reach causes shoulder and neck strain. Short riders often need a stem riser or shorter stem.
Total Weight
E-bikes range from 35 to 80+ lbs. For short riders, weight matters more — you’ll need to lift it over curbs, up stairs, or onto racks.
Wheel Size
20″ wheels lower the center of gravity and make mounting easier. 26″ and 700c wheels are harder to manage for very short riders but offer better rolling efficiency.
Handlebar Height
Adjustable handlebars let you fine-tune your riding position. Look for bikes with at least 2–3″ of handlebar height adjustment range.
⚠️ Red Flags: When a Bike Is Not a Good Fit
These are the warning signs we look for when reviewing bikes. If you see any of these, the bike is likely not a good fit for riders under 5’5″.
| Red Flag | Why It Matters | What to Do |
|---|---|---|
| Minimum seat height > 32″ | Riders under 5’3″ won’t be able to touch the ground safely | Look for a different model or step-through variant |
| Standover height > 30″ | Mounting and dismounting becomes dangerous | Choose a step-through or low-step frame |
| Weight > 70 lbs | Difficult to handle, especially in tight spaces | Look for lightweight or folding alternatives |
| No reach adjustment | Fixed handlebars may cause chronic shoulder/neck pain | Check if a stem riser can be added |
| Vague height range (e.g., “5’0″–6’2″”) | Usually means the bike fits 5’7″+ comfortably, not 5’0″ | Ask for exact geometry specs before buying |
| 700c wheels on a compact frame | Large wheels raise the bottom bracket and standover height | Prefer 26″ or 20″ wheels for very short riders |
Frequently Asked Questions
What is the most important measurement for a short rider?
For riders under 5’3″, the minimum seat height is the single most important number. If you can’t lower the seat enough to touch the ground, no other spec matters. After that, standover height and reach are the next priorities. Read our full guide on e-bike fit for short riders for a complete breakdown.
Are step-through e-bikes better for short riders?
In most cases, yes — especially for riders under 5’2″. Step-through frames eliminate the standover height concern entirely, making mounting and dismounting much safer and easier. They also tend to have a lower center of gravity. See our best step-through e-bikes for petite riders guide.
Can I adjust an e-bike to fit me better?
Yes, to a degree. You can lower the seat, add a stem riser to raise the handlebars, and sometimes swap the stem for a shorter one. However, you cannot change the standover height or the overall frame geometry. If the bike is fundamentally too big, adjustments won’t make it safe.

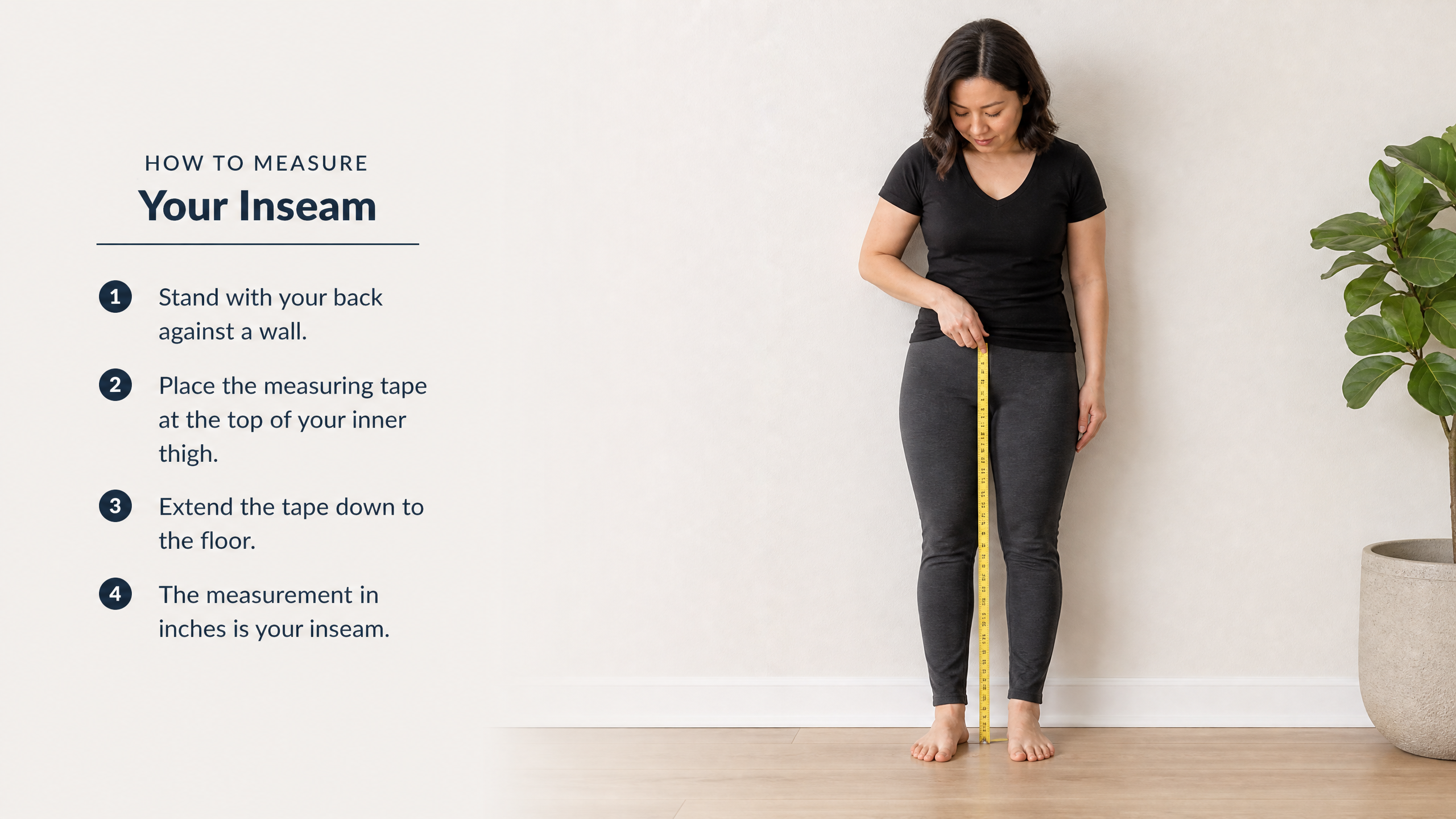

How do I measure my inseam for e-bike sizing?
Stand barefoot against a wall with your feet 6 inches apart. Place a book between your legs (spine up) and press it firmly against your crotch. Measure from the top of the book to the floor. This is your inseam. For a detailed walkthrough, see our how to measure yourself for an e-bike guide.
What’s the best e-bike brand for short riders?
There’s no single best brand — it depends on your height and use case. Lectric, Aventon, Velotric, and Ride1Up consistently offer models that fit riders under 5’5″. See our best e-bikes for short riders in 2026 for our top picks with full fit data.
Is a folding e-bike a good option for short riders?
Often yes — folding e-bikes typically have 20″ wheels, lower standover heights, and are lighter than full-size models. The trade-off is a less smooth ride on rough terrain. See our best folding e-bikes for short riders guide.
