The original Ride1Up Portola was, for this site, a bike with a hole in it: a 20″ folder rated from 4′10″ that published no standover height, no minimum seat height and no reach. We listed it, we scored nothing, and we said so. The Portola 02, which replaced it in 2026, fixes that. Ride1Up now publishes a full geometry table for it — the same lettered geometry table it publishes for the Roadster V3 — and the numbers are worth reading slowly, because two of them pull in opposite directions.
This page reads that table for riders between 5′0″ and 5′5″. We have not ridden this bike — this is an analysis of Ride1Up’s published specifications, checked at the source in September 2026. See our review methodology for what that does and does not mean.

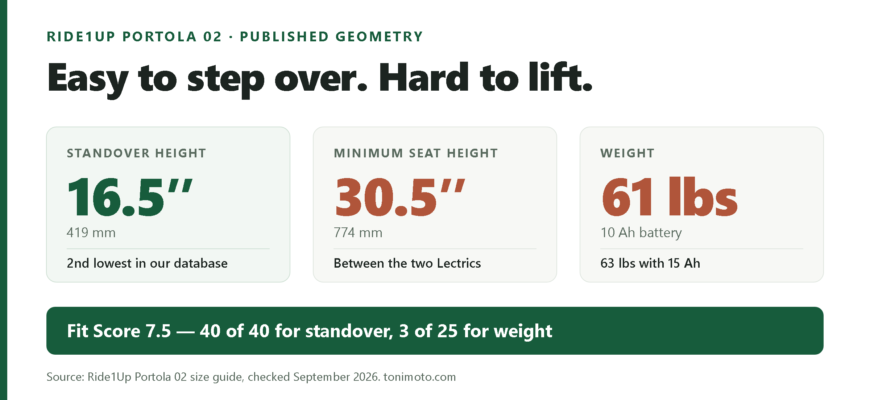

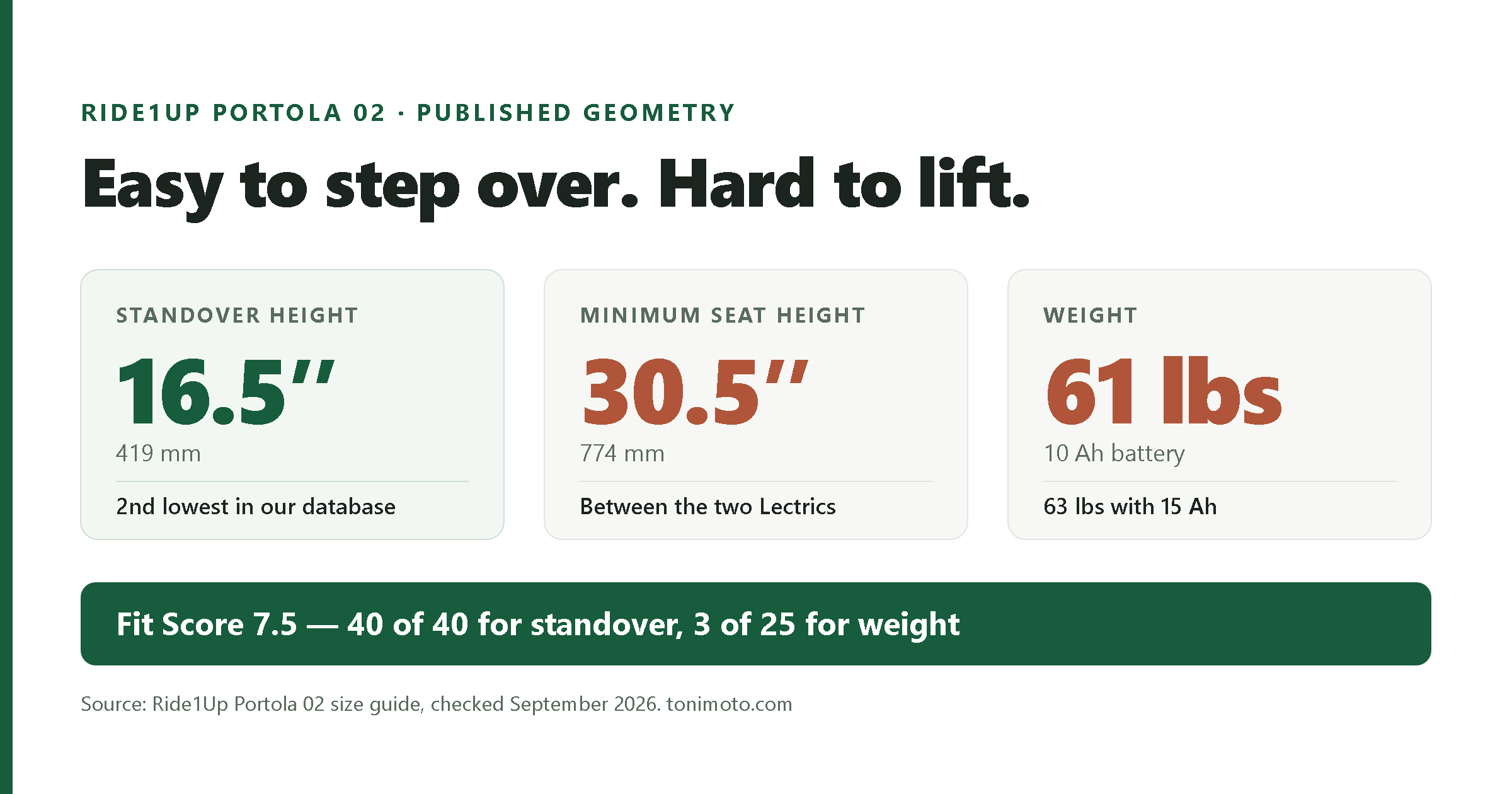

The published geometry
The Portola 02 is sold in two trims, Portola 02 and Portola 02 Lite, each with a 10 Ah or 15 Ah battery. Ride1Up’s size guide gives one frame geometry for all four; only the weight changes.
| Measurement | Portola 02 | Portola 02 Lite |
|---|---|---|
| Stated rider height range | 4′10″–6′4″ in the table; 4′10″–6′3″ in the size-guide text (Ride1Up’s own page disagrees with itself by an inch at the top) | |
| Standover height | 16.5″ (419 mm) | |
| Minimum seat height | 30.5″ (774 mm) | |
| Maximum seat height | 39″ (990 mm) | |
| Handlebar reach | 16″ (420 mm) | |
| Handlebar height | 44.4″ | |
| Wheelbase | 44.75″ (1136 mm) | |
| Total length | 66.2″ | |
| Weight, 10 Ah battery | 61 lbs (27.6 kg) | 58 lbs |
| Weight, 15 Ah battery | 63 lbs | 60 lbs |
| Weight capacity | 342 lbs | |
| Wheels | 20″ × 3″ | |
Two things are missing that we always look for. There is no crank length anywhere on the page. And Ride1Up, like Aventon, does not say whether its weight figure includes the battery; Lectric does, which is why Lectric’s numbers on this site are always quoted with the battery added.
Standover: second-lowest figure we have
At 16.5″ (419 mm), the Portola 02 has the second-lowest published standover in our standover height database. Only the Aventon Sinch 2.5, another 20″ folder, goes lower at 15″ (390 mm). The Tenways CGO800S, the lowest full-size bike we have a figure for, is 16.9″. The Lectric XP Lite 2.0, which is marketed hard at short riders, is 22″.
For a rider with a 26″ inseam — typical around 5′0″–5′1″ — that is nine and a half inches of clearance over the frame. Standover is simply not a question on this bike, for anyone in our height range. That is the 40 out of 40 in the Fit Score below, and it is fully earned.
Seat height: between the two Lectrics, and above our guideline
Standover tells you whether you can straddle the bike. Minimum seat height tells you whether you can sit on it and reach the ground, and on the Portola 02 the answer is less generous. With the seatpost all the way down the saddle is 30.5″ (774 mm) above the ground.
That lands between the Lectric XP4 (29.5″) and the XP Lite 2.0 (32″), and well below the Roadster V3 Low-Step (33.46″). Only six published figures exist for this measurement across the brands we track, and the Portola 02 is the second-lowest of them.
Against our fit guide, though, it is on the wrong side of the line for most of our range. The guide’s ceiling for minimum seat height is 31″ at 5′5″, 30″ at 5′4″, 28″ at 5′2″ and 26″ at 5′0″. The Portola 02 clears the guideline only at 5′5″, misses it by half an inch at 5′4″, and by two and a half to four and a half inches from 5′2″ down. Ride1Up’s 4′10″ minimum is a statement about being able to pedal the bike, which is a different question from sitting flat-footed at a light.
The practical reading: at 5′3″–5′5″ you should expect a toe-touch or better while seated. At 5′0″–5′2″ you should expect to slide forward off the saddle at stops. The 16.5″ standover makes that easy and safe; it just is not the same thing as a foot flat on the ground.

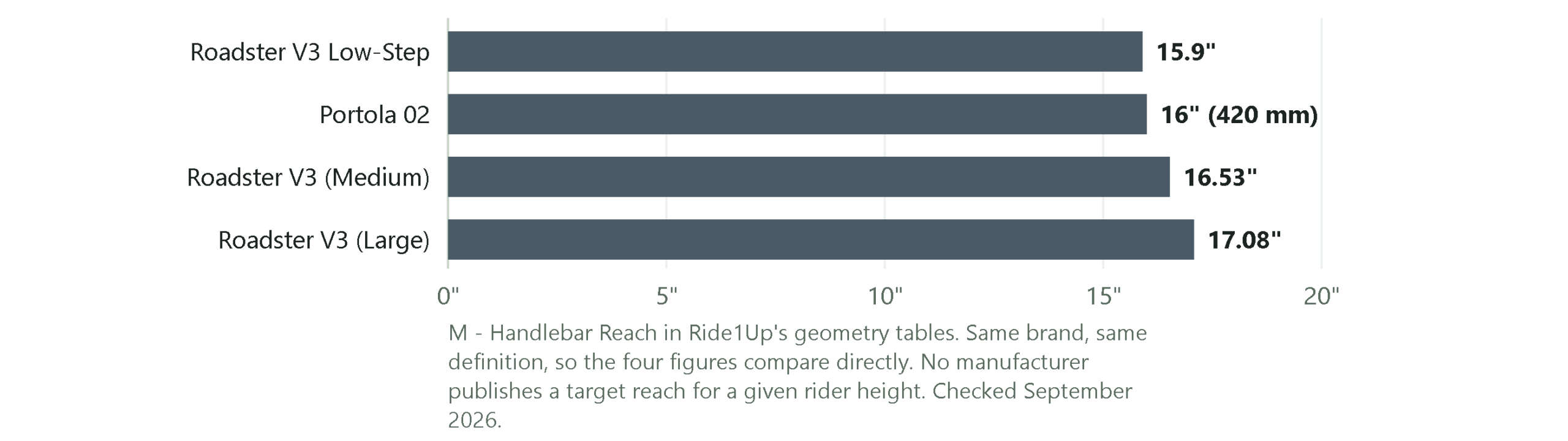

Reach: one number that compares cleanly
Ride1Up publishes handlebar reach as a single figure, using the same definition across its range, so the Portola 02 can be set directly against the Roadster V3.
At 16″ (420 mm) the Portola 02 is within a tenth of an inch of the Roadster V3 Low-Step, the least stretched-out frame Ride1Up sells. The handlebar itself sits at 44.4″, about five inches higher than the Roadster Low-Step’s 39.37″, which is what you would expect from a 20″ folder with a tall stem: an upright position rather than a road-bike lean. Lectric publishes reach for the XP4 too, but as a 15″–18″ range from a telescoping stem, which is not the same kind of number and should not be lined up against this one. Our handlebar reach guide explains why.
The catch: 61 pounds
The Portola 02 weighs 61 lbs with the 10 Ah battery and 63 lbs with the 15 Ah. The Lite trims are 58 and 60 lbs. That is lighter than the Lectric XP4 (69 lbs with its battery) and the Aventon Sinch 2.5 (68 lbs), and twelve pounds heavier than the XP Lite 2.0 (49 lbs).
Weight is where this bike gives back most of what the frame earns. Our weight scale gives full marks at 40 lbs or under and 3 points out of 25 above 60 lbs, and the Portola 02 sits just over that line. Folding does not change it: a folded 61 lb bike is easier to store, not easier to carry up a flight of stairs. If you lift your bike regularly — into a car, onto a rack, up to a second-floor apartment — this is a ground-floor bike, and the standover figure will not help you with that.
What changed from the original Portola
- Geometry is now published. The first Portola listed a rider height range and nothing else we could use. The 02 publishes standover, minimum and maximum seat height, reach, stack and handlebar height.
- Motor and sensing. Ride1Up lists 750 W and 90 Nm, against 65 Nm on the original, with a torque sensor that can be switched to cadence sensing from the display.
- Class. Ships as Class 2, configurable to Class 1, 2 or 3 through the display, with a 28 mph pedal-assist ceiling.
- Brakes. Dual-piston hydraulic with 180 mm rotors on the Portola 02; our brake lever guide covers what that does and does not tell you about lever reach.
- Price. $895 at the time of checking, shown on Ride1Up’s page as a limited-time discount. The original listed at $945. We could not confirm the regular price for the 02 from the page.
Fit Score
Put through our Fit Score — a published formula, not an opinion — the Portola 02 lands at 7.5, fourth of the twelve bikes we have scored. It earns everything available for standover and almost everything for stated minimum height, then loses 22 of 25 points on weight.
For comparison: the Aventon Sinch 2.5, the only bike with a lower standover, scores 7.1 because it is seven pounds heavier. The Lectric XP Lite 2.0 scores 9.0 with a standover five and a half inches higher, because it weighs 49 lbs. The Fit Score does not include minimum seat height, because two of the four brands we track do not publish it — which is exactly why the seat-height section above matters more than the score suggests.
Who this bike fits
- Good fit: riders at 5′3″–5′5″ who want the lowest possible frame to step over, keep the bike at ground level, and want a 750 W motor with a throttle rather than a light bike.
- Works with a caveat: riders at 5′0″–5′2″. The frame is no obstacle at all; the saddle will not come down to a flat-footed stop, so plan on dismounting forward, which the low frame makes easy.
- Wrong bike: anyone who carries their e-bike up stairs or lifts it into a car regularly. At 58–63 lbs depending on trim, none of the four configurations is a carrying bike. The Lectric XP Lite 2.0 at 49 lbs is the folder to look at instead.
Questions
What is the standover height of the Ride1Up Portola 02?
Ride1Up publishes 16.5″ (419 mm) in the Portola 02 size guide, for both the Portola 02 and the Portola 02 Lite. It is the second-lowest published standover in our database, behind the Aventon Sinch 2.5 at 15″.
What is the minimum seat height on the Portola 02?
30.5″ (774 mm), measured with the seatpost fully lowered, with a maximum of 39″. That sits between the Lectric XP4 (29.5″) and the Lectric XP Lite 2.0 (32″). Our fit guide suggests 28″ or lower for riders under 5′3″, so riders at the bottom of our range should expect a toe-touch rather than a flat foot while seated.
Is the Ride1Up Portola 02 good for a 5′0″ rider?
Ride1Up’s stated range starts at 4′10″, and the 16.5″ standover means the frame is no obstacle. The limits are the 30.5″ minimum seat height, which is above our guideline for 5′0″, and the 61 lb weight. A 5′0″ rider who keeps the bike at ground level and is comfortable coming forward off the saddle at stops is inside the bike’s published fit; one who needs a flat foot down while seated, or who carries the bike, is not.
How much does the Portola 02 weigh?
Ride1Up lists 61 lbs for the Portola 02 with the 10 Ah battery and 63 lbs with the 15 Ah battery; the Portola 02 Lite is 58 lbs and 60 lbs respectively. Ride1Up does not state whether these figures include the battery.
What did the Portola 02 change from the original Portola?
For fit, the important change is that Ride1Up now publishes the geometry: standover, minimum seat height and handlebar reach were not published for the original Portola. Ride1Up also lists 90 Nm of torque against 65 Nm before, a torque sensor with a cadence option, Class 1–3 configuration from the display, and a $895 starting price at the time of checking.
